Suntree Surge Protector (OVR) – 2 Poles, Reliable Overvoltage Protection for DC Solar Systems The Suntree Surge Protector (OVR) – 2 Poles is a compact, high-performance device designed to protect DC electrical circuits in solar photovoltaic (PV) systems from overvoltage...
The Suntree Surge Protector (OVR) – 2 Poles is a compact, high-performance device designed to protect DC electrical circuits in solar photovoltaic (PV) systems from overvoltage events caused by lightning, switching surges, or grid faults. It safely diverts excess voltage to ground, shielding inverters, charge controllers, and other sensitive equipment from damage.
Designed for 2-pole DC applications, this surge protective device (SPD) is ideal for solar string configurations and DC combiner boxes. Its modular design allows for quick replacement without rewiring, while its compact profile ensures it fits easily into control panels or distribution boxes.
| Feature | Details |
|---|---|
| Poles | 2 (Positive and Negative DC lines) |
| Nominal Voltage (Uₙ) | 600V DC / 1000V DC (model dependent) |
| Maximum Discharge Current (Imax) | 40kA per pole |
| Protection Type | Type 2 SPD (according to IEC 61643-11) |
| Response Time | ≤ 25 nanoseconds |
| Visual Indication | Window indicator (Green = OK, Red = Replace) |
| Mounting | DIN rail (35mm standard) |
| Enclosure | Flame-retardant thermoplastic, IP20 internal rating |
| Operating Temperature | -40°C to +85°C |
| Standards Compliance | IEC 61643-11, CE, RoHS |
Reliable Overvoltage Protection
Diverts harmful surges away from key equipment, reducing the risk of inverter damage and power loss.
Fast Reaction Time
Responds in under 25 nanoseconds to overvoltage events, ensuring immediate protection.
Easy Visual Monitoring
Built-in indicator window shows real-time status for quick inspection.
Modular and Replaceable
Plug-in design allows quick replacement of SPD modules without rewiring the entire unit.
DIN Rail Mountable
Streamlines installation inside combiner boxes, control panels, or inverter enclosures.
Safe and Durable Construction
High-temperature resistance, flame-retardant housing, and arc suppression features.
Compact and Versatile
Suitable for string-level or inverter-level protection in solar PV systems.
DC Combiner boxes
Inverter DC input protection
Rooftop solar arrays
Ground-mounted PV installations
Residential, commercial, and industrial solar systems

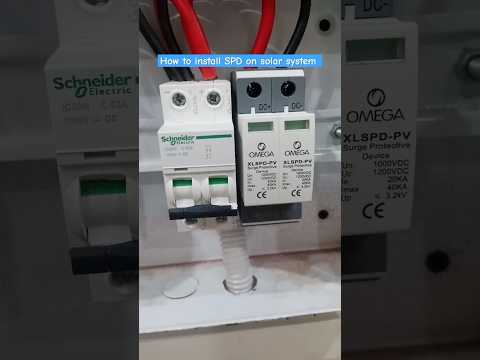

Mount the SPD onto a 35mm DIN rail inside the enclosure.
Connect the positive and negative DC input lines to the SPD terminals.
Ensure a secure ground connection from the SPD to the system’s grounding network.
Power on the system and verify the green window indicator is visible.
Inspect periodically and replace if the indicator turns red.
