Solar Panel Earthing Kit – Complete Grounding Solution for Safe and Reliable PV Systems The Solar Panel Earthing Kit is a vital safety system designed to protect solar power installations from electrical faults, lightning strikes, and static discharge. It establishes...
The Solar Panel Earthing Kit is a vital safety system designed to protect solar power installations from electrical faults, lightning strikes, and static discharge. It establishes a secure and low-resistance grounding path across all key components—ensuring system reliability and personnel safety.
Engineered for both rooftop and ground-mounted solar systems, this kit is tailored for fast installation, long-term durability, and compatibility with common photovoltaic (PV) mounting structures. Whether for residential, commercial, or industrial applications, a proper earthing setup ensures that your solar investment meets both safety standards and performance expectations.
| Component | Details |
|---|---|
| Grounding Rod | Copper-bonded steel, 16mm diameter, 1.5m to 3m length |
| Ground Wire | Bare copper or insulated, 6–10 AWG |
| Grounding Lugs | Tin-coated copper with pre-drilled mounting holes |
| Grounding Clips | Stainless steel clips for rail-to-panel bonding |
| Earthing Compound | Moisture-retentive compound for improved conductivity |
| Ground Connection Brackets | Galvanized steel, anti-corrosion treated |
| Compliance | Designed to meet global grounding safety guidelines |
Personal and System Protection
Prevents dangerous voltage build-up on frames, inverters, or electrical equipment during faults or lightning.
Efficient Current Dissipation
Offers a safe discharge path to redirect fault or surge current safely into the ground.
All-Weather Durability
Rust-proof, UV-stable, and corrosion-resistant materials ensure 25+ years of outdoor performance.
Complete Kit Convenience
Includes all required components—no need for separate sourcing or customization on-site.
Quick Installation
Pre-sized cables, tool-friendly clamps, and standard connection points reduce installation time.
Universal Compatibility
Works with most aluminium mounting structures and PV modules across all common brands.
Drive the grounding rod vertically into soft or medium soil, leaving the connection point exposed.
Attach the bare copper wire using the clamp or lug provided, tightening securely for maximum conductivity.
Use grounding clips to bond each solar panel frame to the aluminium mounting rail.
Connect the ground wire to the inverter grounding terminal, forming a continuous protective loop.
Optional: Apply earthing compound in dry or rocky soil areas to enhance conductivity.
Rooftop solar systems (residential, commercial)
Ground-mounted PV systems
Off-grid and hybrid solar setups
Battery storage systems with grounding requirements

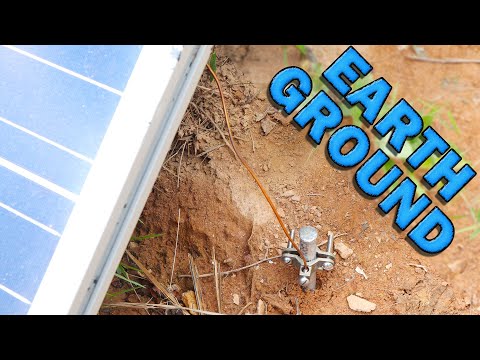

Link: https://youtu.be/wNz2D7PLbLo
