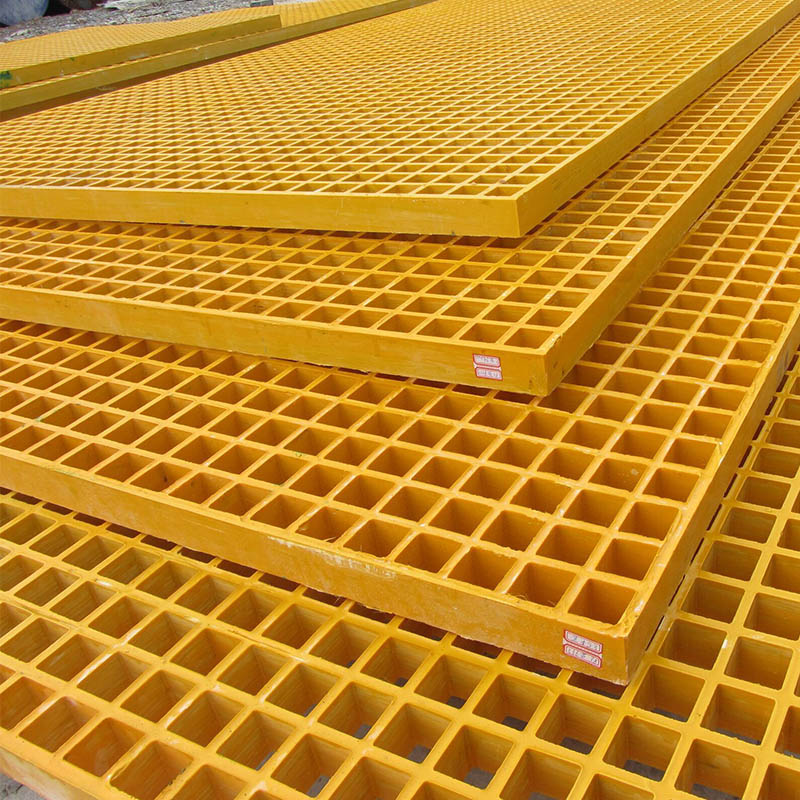

FRP Metal Roof Solar Mounting Walkway Commercial Use Roof Top Maintenance PV Walkway – Safe, Reliable Access for Commercial PV Maintenance The FRP Metal Roof Solar Mounting Walkway is crafted for professionals managing large photovoltaic (PV) installations on flat or...
The FRP Metal Roof Solar Mounting Walkway is crafted for professionals managing large photovoltaic (PV) installations on flat or pitched commercial rooftops. This Fiber Reinforced Plastic (FRP) walkway delivers a lightweight, corrosion-resistant, non‑conductive, and slip‑resistant walking surface across fragile solar arrays. It significantly improves safety during maintenance, cleaning, and inspection, while preserving panel and roof integrity over the long term.
Designed and supplied by Mwanga Solutions, this walkway system is engineered for Kenya’s diverse commercial installations and built to international standards. It offers fast delivery, custom sizing, engineering support, and professional installation across Kenya through Mwanga Solutions.
| Attribute | Description |
|---|---|
| Material | FRP (Fiber Reinforced Polyester Resin with Glass Fiber) |
| Standard Widths | 500mm, 600mm, 700mm, 800mm (custom widths on request up to 1,000mm) |
| Panel Lengths | Up to 4,000mm, adjustable in 500mm increments |
| Available Thickness | 25mm, 30mm, 38mm depending on required load rating |
| Load Capacity | Supports up to 2.0 kN per square meter |
| Surface Finish | Anti-slip molded grating pattern |
| Color | Standard light grey (other colors on request) |
| Fixings | SS304 or SS316 stainless steel clamps and bolts |
| Electrical Safety | Non-conductive, ideal around energized PV arrays |
| UV & Chemical Resistance | Suitable for coastal or industrial environments |
| Operating Temperature | –40 °C to +85 °C |
| Warranty | 10–12 years locally supported |
| Use Case | Benefits | Recommended Walkway Spec |
|---|---|---|
| Rooftop solar arrays | Protects panels and system during inspection or cleaning | Width 600mm, thickness 25mm |
| Industrial PV installations | Mitigates risks to maintenance personnel and panels | Width 700–800mm, thickness 30–38mm |
| Elevated roof decking | Reduces roof and panel damage from foot traffic | Medium to wide grating, anchored rails |
| Multi-roof installations | Enables access between rows and HVAC zones | Interlaced walkway sections |
| Coastal or humid sites | Durable, corrosion-resistant, and non-metallic | SS316 fixings recommended |
Designs accommodate typical Kenyan roof sheeting (iron, aluminium, tile).
Built for performance in Nairobi, Mombasa, Kisumu, Naivasha, and other diverse climates.
On-site measurement and layout planning recommended.
Professional installation services with local installers familiar with roof penetrations and mounting safety requirements.
TÜV / ISO-grade FRP panels delivered with test documentation.
Local warranty and replacement support offered by Mwanga Solutions.
Reduces slipping or fall risk during rainy or dusty conditions.
Enhances safety compliance for large commercial properties and solar farms.
| Specification | Details |
|---|---|
| Material | FRP with anti-slip surface |
| Panel Width Options | 500–1000 mm (common: 700 mm) |
| Panel Length Options | Up to 4000 mm |
| Thickness Options | 25 / 30 / 38 mm |
| Max Design Load | 2000 N/m² (typical maintenance personnel loads) |
| Fixing Type | Clip-mounted or rail-mounted stainless steel |
| Color | Grey (other custom colors available) |
| Weight per Panel (700x2000mm) | Approx. 16 kg |
| Slip Resistance | R9 / R11 graded (molded grip surface) |
| Temperature Rating | –40°C / +85°C |
| Corrosion Resistance | High—suitable for coastal environments |
| Electrical Safety | Non-conductive design |
| UV Resistance | Stabilised clear finish |
| Warranty Period | 10–12 years |
Project Survey & Walkway Layout
Map out panel rows, voids, and roof structure.
Decide access paths, e.g. around inverter zones, inspection strips.
Fabrication & Cutting
Panels are cut to site-matched dimensions.
Anchor hole positions pre-drilled as per roof purlin layout.
Fixing & Routing
Secure walkway panels with stainless steel clamps (no roof penetration).
Route cables through provided cable trays or clips.
Panel Interconnection
Join segments using splice clips or overlap methods for seamless walk path.
Periodic Inspection
Every 6–12 months: clean walkways and check fixings remain secure.
Non-corrosive throughout life, unlike steel which may rust over time.
Lightweight and easier to handle on rooftop installations than heavy metal gratings.
Electrically safe, avoiding the risk of static or ground fault exposure.
Minimal heat absorption, keeping walkway cooler under midday sun.
Q1: Why not just walk on panels or the roof decking?
Walking on solar modules risks microcracks and performance degradation. Panel edges are also more fragile than FRP walkways.
Q2: Can these withstand Kenya’s rainy and dusty seasons?
Yes. FRP is UV-protected, corrosion-proof, and unaffected by humidity or heat cycles.
Q3: Does installing walkway panels void roof warranty?
Not when using certified stainless steel clamps and Mwanga’s non-penetrating mounting system aligned with roofing standards.
Q4: Are walkways safe around electrical outages or live circuits?
FRP is non-conductive, providing enhanced safety near live PV cables or conduit runs.
Q5: How long before replacement is needed?
Under typical conditions, these walkways perform reliably for 10–20 years, depending on load and environmental stress.
Large Tiered Solar Farm (Nairobi Assessed)
Installation team commented: “Workers are no longer risking damage to modules; inspections now take half the time.”
Commercial Warehouse Solar Setup (Mombasa)
Owner feedback: “Reduced rooftop repair bills and insurance claims.”
Hospital Maintenance Team (Kisumu)
Safety officer noted: “Non-slip pathways significantly lowered risk for routine panel inspections.”
Kenyan engineering adapted to local roof and solar configurations
Fast nationwide shipping to Nairobi, Eldoret, Meru, Mombasa, and beyond
Optional professional installation and on-site survey services
Local warranty backed by Mwanga Solutions’ commercial integrity
Competitive pricing and volume discount for larger projects
Whether you are managing a solar farm, commercial building, or rural facility, improve safety, efficiency, and protection of your PV system with the FRP Solar Maintenance Walkway from Mwanga Solutions.
