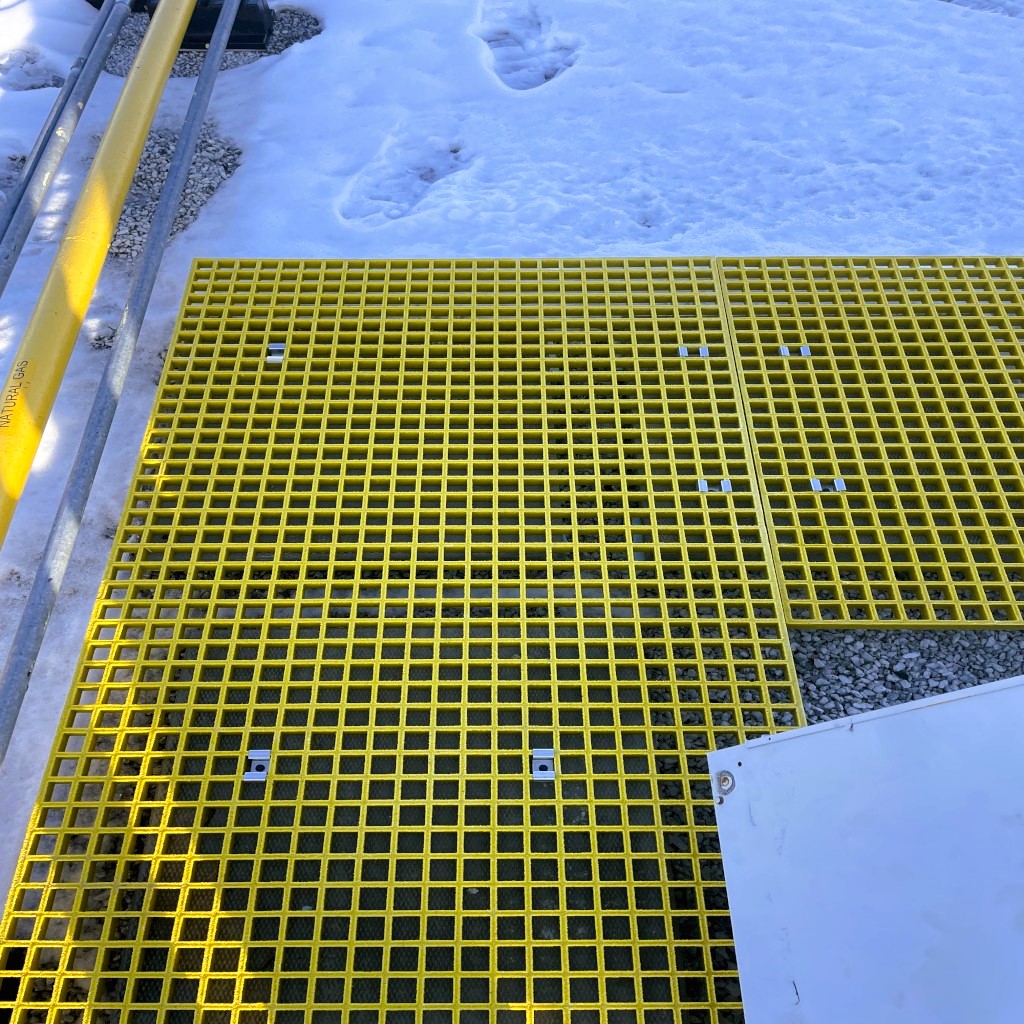

FRP Grating Fiberglass Grating Walkway With Gritted Surface – Anti-Slip, Corrosion-Resistant Safety Platform for Industrial and Outdoor Use in Kenya The FRP Grating Fiberglass Walkway with a gritted surface is a robust, slip-resistant platform designed for high-traffic, wet, or oily...
The FRP Grating Fiberglass Walkway with a gritted surface is a robust, slip-resistant platform designed for high-traffic, wet, or oily environments where safety and durability are paramount. Manufactured using high-strength fiberglass-reinforced plastic (FRP), this grating provides superior structural integrity, chemical resistance, and anti-slip properties, making it ideal for walkways, ramps, trenches, platforms, and elevated surfaces across industrial, commercial, and coastal settings. Engineered and supplied by Mwanga Solutions, this anti-slip FRP grating is tailored for Kenya’s demanding environments—from marine zones in Mombasa to factory floors in Nairobi.
Technical Specifications
| Attribute | Detail |
|---|---|
| Material | Isophthalic or Vinyl Ester Resin + E-glass fiber |
| Surface Finish | Gritted (silicon carbide bonded) for enhanced traction |
| Colors | Standard in yellow, green, and grey |
| Standard Thickness | 25 mm, 30 mm, 38 mm |
| Standard Panel Size | 1220 mm × 3660 mm (custom cuts available) |
| Load Rating | Up to 500 kg/m² uniform load |
| Temperature Resistance | –40°C to +120°C |
| Fire Resistance | ASTM E84 Class 1 (low flame spread) |
| Electrical Conductivity | Non-conductive, dielectric safe |
| Corrosion Resistance | Excellent in saltwater, oil, acids, and chemical fumes |
Use Cases in Kenya
| Application | Description |
|---|---|
| Coastal walkways | Used in marine jetties, beach resorts, and salty environments like Lamu or Diani |
| Factory floors | Anti-slip walking surface for workers in oil, food, and textile industries |
| Water treatment plants | Durable solution for catwalks and chemical tank access |
| Rooftop solar installations | Provides safe maintenance paths for solar technicians |
| Livestock farms | Hygienic, washable platforms that resist animal waste acids |
| Power stations and substations | Safe access paths in high-voltage zones due to non-conductivity |
| Footbridges over drainage | Non-rust platform for pedestrian access in rainy regions |
Anti-Slip Performance
| Surface Type | Slip Resistance Rating |
|---|---|
| Gritted (standard) | R13 (highest industrial grade) |
| Concave surface | R11 (optional finish) |
| Molded bare finish | R10 (used in dry indoor areas) |
Mechanical and Chemical Strength
| Property | Value |
|---|---|
| Flexural Strength | ≥ 250 MPa |
| Tensile Strength | ≥ 150 MPa |
| Impact Resistance | High (does not shatter on sudden impact) |
| Chemical Resistance | Resistant to acids, alkalis, hydrocarbons, chlorinated water |
Why This FRP Grating Is the Ideal Anti-Slip Solution
This grating is specially manufactured with a gritted surface, using bonded quartz or silicon carbide granules. Unlike metal checker plates or timber boards that wear down over time, the gritted surface retains its traction across years of heavy use and exposure to weather. Whether it rains in Kisumu or experiences coastal salt spray in Kilifi, the gritted texture does not degrade or smoothen. It remains bonded firmly to the panel surface during cleaning, scrubbing, or even under mechanical wear.
The composite material makes it ideal for any installation where rusting, rotting, or conductivity could present a hazard. Unlike steel, FRP grating does not require painting or coating, and its UV-resistant surface keeps the colors vibrant over time. It is also lightweight compared to metal, reducing installation strain and transport costs.
Installation Guidelines
| Step | Description |
|---|---|
| Surface survey | Measure area dimensions and identify anchor points |
| Cutting | Panels can be cut using carbide-tipped saws on-site |
| Edging | Edge banding optional for visual and safety enhancement |
| Fixing | Stainless steel saddle clips or M-clamps to fasten grating to frames |
| Jointing | Splice panels using FRP or stainless joining brackets for long spans |
| Clean-up | Wipe down surface post-installation; ready for use immediately |
Advantages Over Steel or Wood
| Feature | FRP Grating | Steel | Wood |
|---|---|---|---|
| Corrosion Resistance | Excellent | Poor | Moderate |
| Weight | Lightweight | Heavy | Moderate |
| Conductivity | Non-conductive | Conductive | Non-conductive |
| Maintenance | None needed | Regular painting | May rot or splinter |
| Installation Ease | One person can handle | Two-person team needed | Requires care |
| Life Expectancy | Over 20 years | 5–10 years in corrosion zones | 3–5 years in wet zones |
Environmental Performance
| Parameter | Performance |
|---|---|
| UV Resistance | High; no discoloration under direct sun |
| Salt Spray Resistance | Withstands marine and coastal corrosion |
| Fire Safety | Low smoke and flame spread |
| Water Absorption | Negligible (<0.5%) |
| Recyclability | 100% recyclable after service life |
Warranty and Service by Mwanga Solutions
All FRP grating panels from Mwanga Solutions come with a 10-year structural warranty and optional professional installation. We provide custom cutting and site measurements at no extra cost within Nairobi, Mombasa, Eldoret, Kisumu, and other urban centers.
Mwanga Solutions also offers nationwide delivery, mobile payments, and site consultation. Our team helps you select the right resin type, thickness, grit level, and panel layout based on your use-case—whether that is for industrial, agricultural, or commercial use. You get localized service, faster delivery than imported goods, and long-term technical support.
Frequently Asked Questions
How does FRP grating compare to galvanized steel in marine zones?
FRP grating far outperforms steel in salty and humid areas. While steel will begin to corrode within 1–2 years even when galvanized, FRP remains stable and unreactive for 15–20 years with no rust, even in direct contact with seawater.
Can it be installed on top of an existing metal or wood platform?
Yes. As long as the base structure is strong enough, the grating can be mounted over it using clamps or brackets.
Does the gritted surface wear off over time?
Not easily. The bonded quartz grit is embedded during manufacture and withstands years of foot traffic, weather exposure, and even light mechanical abrasion.
Is it safe to use in areas where water or oil is constantly present?
Yes. This product is specifically made for such environments. Its R13 slip rating provides maximum safety even in oily, greasy, or wet areas.
How do I clean it?
Simply pressure-wash or scrub with mild detergent. The surface is chemical resistant, so you can also use bleach, degreasers, or disinfectants.
Applications in Kenya by Sector
| Sector | Application |
|---|---|
| Oil and Gas | Non-sparking maintenance catwalks at depots and refineries |
| Transport | Access ramps and trench covers in bus terminals and rail yards |
| Food Industry | Hygienic walkways and floor drains in dairy and meat plants |
| Power Utility | Safe flooring around transformers and switchgear |
| Hotels and Pools | Slip-free decks and bridgewalks for tourists and staff |
| Animal Farms | Corrosion-resistant walkways in pig or poultry units |
Ordering and Delivery Process
Contact Mwanga Solutions for a free consultation or site visit.
Provide your area dimensions, application type, and any special requests.
Choose preferred thickness, color, grit level, and mounting method.
We deliver panels to your site or warehouse within days.
Our team can assist with installation or guide your technicians remotely.
We accept payments via MPESA, bank transfers, and corporate procurement systems. For large institutions, we also offer framework supply agreements with scheduled deliveries.
Watch How It Works
<div style="margin-top: 30px;"> <iframe width="100%" height="480" src="https://www.youtube.com/embed/FKJw2X6iENc" frameborder="0" allowfullscreen></iframe> </div>
This video offers a step-by-step look into how gritted-surface FRP grating walkways are installed and tested for real-world conditions. Notice how the surface maintains grip even with water poured directly on it. The lightweight yet rigid nature of the grating allows it to span longer distances without bending or warping. This walkthrough gives insight into both its industrial-grade quality and ease of handling.
Why Buy from Mwanga Solutions
When it comes to high-performance FRP grating in Kenya, Mwanga Solutions offers unmatched value. Our gritted FRP walkways are engineered for local conditions—sun, rain, salt, chemicals, and all. We combine global-grade quality with local service, ensuring your project is delivered fast, affordably, and with full technical backing. Whether you're building a new factory, upgrading a resort, or enhancing safety in a water treatment plant, we have the solution.
We supply more than just grating—we deliver reliability, compliance, and peace of mind. Contact Mwanga Solutions today to request a quote or schedule an on-site survey.
