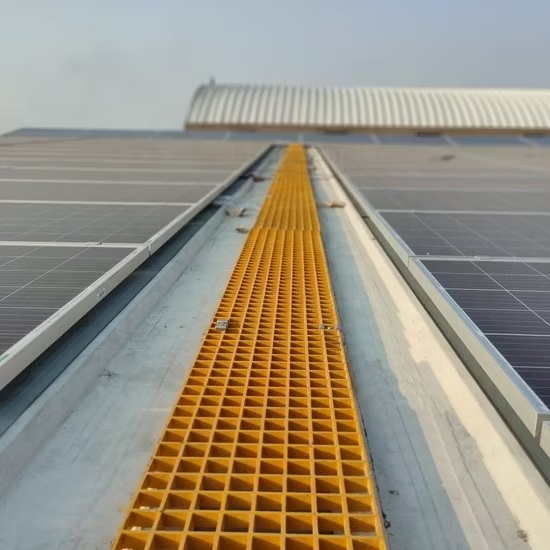

Fibregrating Fiberglass FRP 400×4000mm Customized Solar Panel Roof Walkway Grating The Fibregrating Fiberglass FRP Walkway is a premium, customizable rooftop grating solution designed for long-term durability, corrosion resistance, and slip protection in solar panel installations. With dimensions of 400 mm...
The Fibregrating Fiberglass FRP Walkway is a premium, customizable rooftop grating solution designed for long-term durability, corrosion resistance, and slip protection in solar panel installations. With dimensions of 400 mm x 4000 mm, this walkway grating is engineered to offer safe, strong, and non-conductive access between rooftop solar arrays while reducing maintenance and installation costs.
| Attribute | Specification |
|---|---|
| Product Name | Fibregrating FRP Solar Panel Roof Walkway |
| Dimensions | 400 mm (W) x 4000 mm (L) |
| Material | Fiberglass Reinforced Plastic (FRP) |
| Surface Type | Gritted, Anti-slip Coated |
| Resin Type | Isophthalic Polyester (optional vinyl ester available) |
| Color Options | Grey (default), Yellow, Green, Custom on Request |
| Structural Form | Pultruded or Molded Grating |
| Thickness | 25 mm, 30 mm, or 38 mm options |
| UV Resistance | UV Stabilized |
| Fire Rating | UL 94 V-0 (Self-extinguishing) |
| Customization | Available in size, color, mounting holes, and edge finish |
| Application Site | How It’s Used |
|---|---|
| Rooftop Solar Installations | As safe walkways between solar panels, inverters, and arrays |
| Commercial & Industrial Roofs | Safe access paths for maintenance staff |
| Water Treatment Plants | Corrosion-resistant elevated access walkways |
| Off-grid Power Systems | Cable-safe walkways between panel blocks |
| Chemical & Utility Plants | Insulated paths in aggressive corrosive environments |
| Performance Criteria | Specification |
|---|---|
| Load Bearing Capacity | Up to 5000 kg/m² (depending on thickness) |
| Flexural Strength | > 240 MPa (ASTM D790) |
| Tensile Strength | > 210 MPa (ASTM D638) |
| Compressive Strength | > 200 MPa |
| Temperature Range | -40°C to +120°C operational |
| Weight (approx.) | 11–15 kg per 400x4000 mm panel (varies by thickness) |
| Electrical Conductivity | Non-Conductive |
This walkway is designed to integrate seamlessly into solar PV mounting systems, both flat-roof and sloped installations. It can be installed using:
Stainless steel hold-down clips
Adjustable leg supports or frames
UV-resistant FRP support frames
Integrated cable conduits (optional)
| Installation Type | Method |
|---|---|
| Direct Roof Mount | Anchored using FRP/SS L-brackets and vibration pads |
| Raised Platform System | FRP grating on FRP legs (adjustable height system) |
| Clamp-on to Mount Rails | Compatible with standard aluminum PV mounting systems |
| Feature | Custom Options |
|---|---|
| Dimensions | Any width from 300–600 mm, any length up to 6 m |
| Cut-outs for Obstructions | Cable entries, conduit holes, inverter access points |
| Anti-slip Surface Grade | Standard grit, Heavy-duty grit |
| Mounting Holes | Pre-drilled on request |
| Branding/Embossing | Available for large orders |
| Feature | FRP Grating (Fibregrating) | Galvanized Steel Grating |
|---|---|---|
| Corrosion Resistance | Excellent (acid, salt, UV) | Moderate (prone to rust over time) |
| Weight | Lightweight | Heavy |
| Electrical Conductivity | Non-conductive | Conductive |
| Installation Time | Quick & modular | Requires welding |
| Maintenance | Very Low | High – repainting, de-rusting required |
| Anti-Slip Surface | Gritted with texture | Smooth or serrated |
| Lifespan | 20+ years | 5–10 years (with maintenance) |
| Fire Resistance | Self-extinguishing (UL94 V-0) | Melts or warps under extreme heat |
| Thermal Expansion | Low | High |
Complies with OSHA and international walkway safety standards
Designed for Kenyan weather: resists high UV and humidity
Chemical spill-proof: ideal for water and energy plants
Low smoke emission during fire situations
| Item | Details |
|---|---|
| Minimum Order Quantity | 1 panel (for trials) or 10+ for discounted rates |
| Lead Time | 5–7 working days for standard sizes, 10–14 days for custom |
| Packaging | Stretch-wrapped, padded corners, steel-reinforced bundles |
| Delivery Locations | Nairobi, Mombasa, Kisumu, Nakuru, Eldoret & Nationwide |
| Installation Guidance | Free technical PDF/manual and WhatsApp support |
5-Year Manufacturer’s Warranty
ISO 9001 Certified Manufacturing
Fire Safety, UV, and Load Test Reports Available on Request
Mwanga Solutions is Kenya’s trusted supplier of certified FRP solutions for energy, infrastructure, and water industries. We understand the unique challenges of solar power installations in Kenya’s harsh climate and offer products that blend reliability, safety, and cost-effectiveness.
Our Fibregrating FRP Solar Roof Walkways are ideal for EPC contractors, rooftop solar companies, maintenance firms, and industrial clients seeking:
Durable walkways that don’t damage roofing sheets
Long-lasting ROI on installations
Easy-to-install modular panels
Low-maintenance, zero-rust systems
Ready to elevate your solar projects with high-performance FRP walkways?
Visit: https://mwanga.co.ke/
Call or WhatsApp: +254 729 299 439
Email: info@mwanga.co.ke
We offer free consultation, technical drawings, and volume-based discounts.
Order 400×4000mm Fibregrating FRP Solar Roof Walkway Grating in Kenya. Anti-slip, corrosion-proof, customizable panels from Mwanga Solutions.
