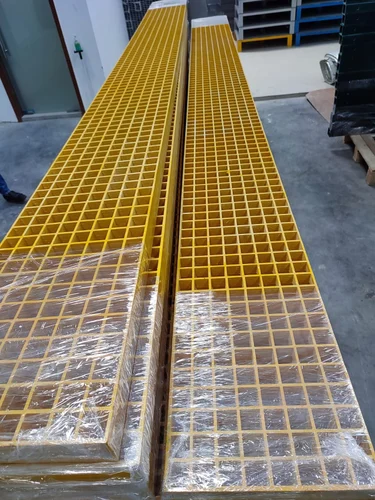

Coated Yellow 25 mm FRP Roof Grating for Industrial Walkways- high‑performance access solution Engineered for longevity, safety, and visibility, the Coated Yellow 25 mm FRP Roof Grating from Mwanga Solutions offers a high‑performance access solution suited to rooftop solar systems,...
Engineered for longevity, safety, and visibility, the Coated Yellow 25 mm FRP Roof Grating from Mwanga Solutions offers a high‑performance access solution suited to rooftop solar systems, industrial platforms, chemical plants, and marine environments. The 25 mm thickness ensures structural integrity while maintaining a lightweight design. Its UV‑stable yellow resin coating improves safety in low‑light areas and corrosive industrial zones.
| Feature | Description |
|---|---|
| Product | Coated Yellow FRP Roof Grating |
| Base Material | Fiberglass Reinforced Plastic (Molded FRP) |
| Resin & Coating | Isophthalic / Vinyl Ester Resin with UV pigment |
| Surface Finish | Gritted, non-slip anti-slip top |
| Mesh Pattern | 38 mm × 38 mm square mesh |
| Thickness | 25 mm |
| Panel Dimensions | Standard 1220 × 3660 mm; custom sizes upon request |
| Load Capacity | Up to 2,500 kg/m² (approx. industrial-grade) |
| Weight per m² | ~14 kg (molded grating, 38 % open area) |
| UV Resistance | ≥3,000 hr salt‑spray and UV ageing testing |
| Fire Rating | ASTM E84 Class 1 / UL 94 V‑0 (fire-retardant resin available) |
| Electrical Insulation | Non-conductive |
| Chemical Resistance | Excellent (resistant to acids, alkalis, solvents) |
| Warranty | 5-year defect warranty via Mwanga Solutions Kenya |
| Property | Standard/Test | Result / Rating |
|---|---|---|
| Flexural Strength | ASTM D790 | >240 MPa |
| Tensile Strength | ASTM D638 | >160 MPa |
| Impact Resistance | ASTM D256 | Very High |
| Slip Resistance (BPN) | Walkway Testing | ≥75 (Diamond grit finish) |
| UV Ageing | ASTM G154 & Salt Spray | No discoloration; low degradation |
| Fire Safety | UL 94 / ASTM E84 | V‑0 / Class 1 |
| Chemical Compatibility | Resistance Testing Performed | Excellent across industrial agents |
| Electrical Conductivity | IEC or ASTM Electrical Test | Fully non-conductive |
High-Visibility Safety: Bright yellow, UV-stable finish enhances site safety, even in dimly lit areas.
Anti-Slip Traction: Gritted surface maintains secure footing under wet, chemical, or oily conditions.
Corrosion Resistance: Ideal for coastal, chemical, and salt-laden industrial environments.
Lightweight Structural Strength: One-third the weight of steel with similar load capacity and easier to install.
Non-Conductive: Suitable for use near electrical systems, transformers, or solar panel arrays.
Low Maintenance: Does not rust or require sealing; periodic rinse or brushing is sufficient.
Modular and Customizable: Panels can be pre-cut, drilled, or joined with clamps and support frames.
| Sector | Typical Application Use |
|---|---|
| Chemical Plants | Toxic and acidic environments require reliable anti-corrosive flooring |
| Petrochemical Facilities | Safe elevated catwalks and access platforms |
| Rooftop Solar Installations | Safe walkways between PV arrays, enhancing inspection access |
| Water Treatment Facilities | Safe surfaces in wet chemical dosing zones |
| Marine Docks and Offshore | Salt-resistant decking for jetty and pump house access |
| Food & Beverage Processing | Hygienic, non-slip, washable platforms |
| Power Generation Sites | Safe maintenance access for turbine decks and transformer yards |
Pre-cut panels to match rooftop or platform layout.
Fix using stainless steel M‑clips, FRP clamps, or anchor bolts.
Optional accessories: edge trim, toe-plates, clamp connectors, handrails.
Compatible with raised support legs or FRP sub-frames.
Panel joints aligned with M-clip connectors for scalable walkway length.
| Feature | Coated Yellow FRP Grating | Galvanized Steel Grating |
|---|---|---|
| Corrosion Resistance | Excellent (resists chemicals and rust) | Poor (prone to corrosion, needs coatings) |
| Weight | Lightweight (~14 kg/m²) | Heavy and cumbersome (>45 kg/m²) |
| Slip Performance | Gritted anti-slip finish | Slippery unless serrated or coated |
| Electrical Conductivity | Non-conductive | Conductive (not safe near live cables) |
| Maintenance | Low (wash as needed) | High (maintenance, painting, repair) |
| Fire Safety | UL 94 V‑0 or Class 1 available | Melts; conductive |
| Visibility & Safety | Bright yellow for hazard marking | Standard grey (less visible) |
Durable under Mombasa coastal humidity and salt spray.
Provides safer, clearly visualized pathways on Nairobi industrial rooftops.
Suitable for Turkana solar plants where UV durability and safety are essential.
Preferred over metal in chemical-processing zones in Thika and Athi River.
Is the yellow coating permanent?
Yes. UV-stable pigments are integrated into the resin system and resist fading for over 10 years.
What thickness options are available?
Standard grating is 25 mm thick. Thicker panels (30 mm and 38 mm) or heavy-duty mesh configurations can be quoted.
Can it support equipment and trolleys?
Yes. Engineered for up to 2,500 kg/m² uniform load; structural engineers can size supports for additional loads.
Does it require specialized tools for installation?
No. The grating can be cut with standard carbide disc saws or angle grinders; drilled using carbide bits.
Is it suitable for food or beverage environments?
Yes. It is non-toxic, washable, non-porous, and corrosion-resistant in food-grade environments.
Nationwide Delivery: We ship to Nairobi, Kisumu, Mombasa, Eldoret, Nakuru, and more.
Lead Time: Stock items ship within 3–5 days; custom panels within 7–10 working days.
On-site Consultation: We provide layout planning, load recommendations, and cut-to-size cutting.
Bulk Discounts: Available for orders over 20 m² and for projects requiring custom cuts.
For quotes, technical drawings, or project-specific consultations, contact:
Website: https://mwanga.co.ke/
Phone/WhatsApp: +254 729 299 439
Email: info@mwanga.co.ke
