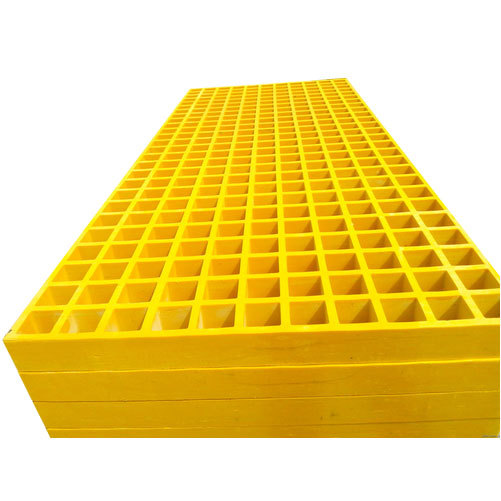

50 × 50 × 25 mm Fiberglass Molded FRP Grating Panel (1220 × 3660 mm) Molded fiber-reinforced plastic grating panel designed for demanding environments—offering strength, safety, corrosion resistance, and lightweight installation. Ideal for rooftop solar walkways, industrial platforms, drainage covers,...
Molded fiber-reinforced plastic grating panel designed for demanding environments—offering strength, safety, corrosion resistance, and lightweight installation. Ideal for rooftop solar walkways, industrial platforms, drainage covers, coastal docks, and food processing facilities across Kenya.
| Specification | Details |
|---|---|
| Mesh Size | 50 mm × 50 mm square |
| Panel Dimensions | 1220 mm × 3660 mm standard; custom sizes available |
| Panel Thickness | 25 mm |
| Open Area | Approximately 70% |
| Approximate Weight | 30–38 kg per panel (≈12–13 kg/m²) |
| Resin Options | Orthophthalic, Isophthalic, or Vinyl Ester |
| Surface Finish | Gritted anti-skid (R13 slip rating), concave or flat options |
| Operating Temperature Range | –40 °C to +120 °C |
| UV Stability | UV-inhibited resin for long outdoor exposure |
| Electrical Conductivity | Non-conductive |
| Fire Resistance | Optional Class 1 per ASTM E84 |
| Corrosion Resistance | Excellent against acids, alkalis, and saltwater |
| Edge Customisation | Available upon request |
| Load Uniformity | Designed for 500–700 kg/m² distributed load |
| Warranty | Standard service life of 10–15 years |
| Property | Typical Value |
|---|---|
| Tensile Strength | 200–250 MPa equivalent |
| Flexural Strength | 300–400 MPa |
| Barcol Hardness | 45–55 |
| Slip Resistance (Wet) | Coefficient ≥ 0.6 |
| Modulus of Elasticity | Approximately 15 GPa |
| Water Absorption | < 0.5% |
| Thermal Expansion Coefficient | approximately 1.8 × 10⁻⁵ /°C |
| Deflection at 600 mm Span | < 5 mm under 4 kN/m² load |
| Load Capacity (Uniform) | 500–700 kg/m² |
| Load Capacity (Point Load) | 1000–1500 kg depending on support |
| Support Span (mm) | Uniform Load Capacity (kg/m²) | Deflection Under Load (mm) |
|---|---|---|
| 450 | ~700 | ~3.0 |
| 600 | ~500 | ~4.0 |
| 750 | ~350 | ~5.0 |
| 900+ | Not recommended | Exceeds safe deflection |
| Sector / Project Type | Application Description |
|---|---|
| Rooftop Solar Installations | Safe technician walkways, protecting roof membranes |
| Chemical & Food Processing | Corrosion-resistant flooring, hygienic and washable areas |
| Coastal & Marine Infrastructure | Saltwater-resistant panels for docks and jetties |
| Wastewater Treatment Facilities | Drainage-safe walkways with high load stability |
| Agricultural or Livestock Zones | Non-slip flooring for pens and feed areas |
| Industrial Workshop Access | Durable surface for heavy machinery and oil exposure |
Support beams recommended no more than 600–750 mm apart
Fixing can use stainless steel (SS316) clips or molded FRP saddle clamps
Panel edges should be sealed after cutting with resin or edge trim
Gritted surface is ideal for wet or oily environments; smooth finish available for dry areas
Optional FRP or vinyl edge trims help prevent trip hazards
| Feature | 50 × 50 × 25 mm FRP Grating | Galvanized Steel | Timber or Concrete |
|---|---|---|---|
| Weight | Lightweight, manually handled | Heavy and bulky | Heavy or fragile |
| Corrosion Resistance | Excellent, non-metallic | Prone to rust | Prone to rot/crack |
| Electrical Safety | Non-conductive | Conductive risk | Safe |
| Slip Resistance | Excellent with gritted surface | Limited | Low |
| Maintenance | Minimal (no painting or rust treatment) | Frequent | Moderate |
| Installation Speed | Fast and modular | Slow and heavy | Time-consuming |
| Lifespan | 15–25 years or more | 5–10 years | 3–8 years |
Panels are stocked in Nairobi by Mwanga Solutions and available for same-day dispatch. We offer custom cutting, bespoke edge trimming, layout consulting, and delivery across all major Kenyan towns including Kisumu, Eldoret, Nakuru, and Mombasa.
Technical documentation, load test certificates, and compliance data are provided upon order. We support both bulk orders and individual projects with tailored solutions.
The 50 × 50 × 25 mm FRP grating panel strikes a balance between structural durability and usability. Ideal for installations like solar walkway systems or industrial platforms where light-foot traffic and occasional equipment movement are common, it ensures longevity without demanding frequent maintenance. Its gritted surface maintains traction even when surfaces become wet or dusty, enhancing worker safety across Kenyan environments.
Installation is flexible and efficient: the lightweight form allows manual handling, reducing labor and equipment costs. Panels can be cut to exact dimensions on-site to fit around solar frames, drains, or piping without compromising edge strength. Since the material is non-conductive and non-corroding, it avoids complications common with metallic or wood-based flooring solutions—especially in environments with exposure to UV, moisture, or chemicals.
From a lifecycle cost perspective, this grating panel delivers exceptional value. With a certified lifespan of 10–15 years or more, it outperforms steel or timber in both durability and hygiene. It does not require painting or rust treatment, and its chemical-inert properties make it easy to clean—perfect for food plants, coastal zones, or sanitary walkways. Mwanga Solutions’ local fabrication and stocking ensures swift delivery, site-specific sizing, and installation support throughout Kenya.
Heavy-duty 50 × 50 × 25 mm molded fiberglass grating panel (1220 × 3660 mm) with gritted anti-skid surface and high strength for industrial platforms, solar walkways, and coastal installations in Kenya. Corrosion-proof, lightweight, chemically inert, UV-stable. Available from Mwanga Solutions.
