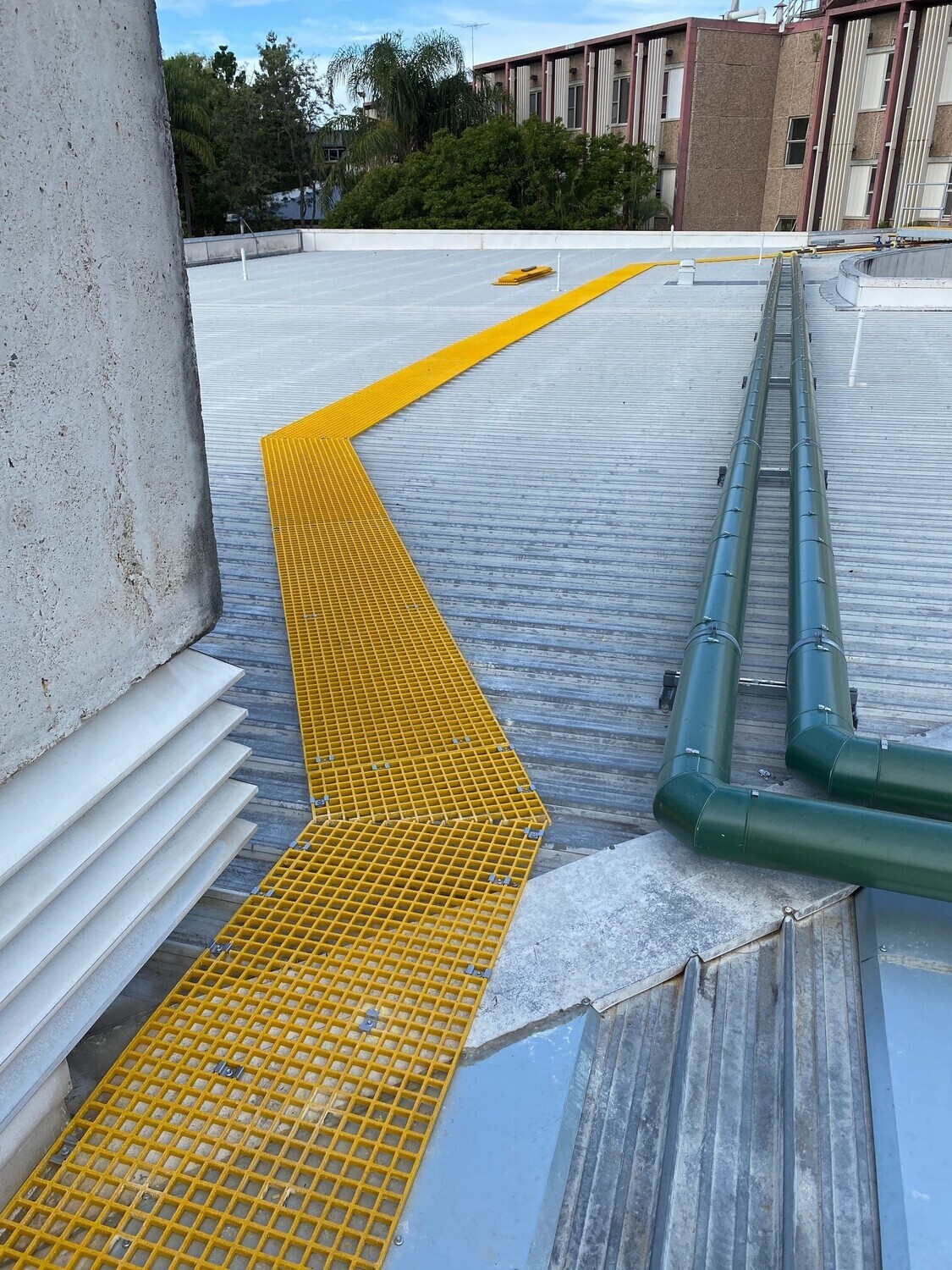

40 mm FRP Moulded Grating Mesh for Rooftop & Industrial Walkways
The 40 mm FRP (Fiberglass Reinforced Plastic) Moulded Grating Mesh is a high-strength, corrosion-resistant flooring and walkway solution designed for rooftop solar installations, chemical plants, wastewater facilities, and general industrial applications. Its excellent mechanical properties and non-slip surface make it ideal for pedestrian safety even in wet, oily, or corrosive environments.
Product Specifications
| Feature | Description |
|---|---|
| Mesh Size | 40 mm x 40 mm |
| Grating Thickness | 25 mm, 30 mm, 38 mm, or 40 mm (Customizable) |
| Panel Dimensions | 1220 mm x 3660 mm (Standard), customizable to site needs |
| Material Composition | Fiberglass + Polyester/Isophthalic/Vinyl Ester Resin |
| Color Options | Yellow, Grey, Green, Custom Available |
| Surface Finish | Gritted (Anti-slip), Smooth, Concave |
| Open Area | Up to 70% for superior drainage and ventilation |
| Load Capacity | Up to 5000 kg/m² (depending on thickness and span) |
| Operating Temperature | -40°C to +120°C |
| Fire Retardant Grade | ASTM E84 Class 1 (optional) |
| UV Resistance | UV Stabilized Resin for extended outdoor lifespan |
| Certifications | ISO 9001:2015, ASTM D635, BS EN 13706 |
Use Cases in Kenya
| Application | Benefit |
|---|---|
| Solar Rooftop Walkways | Safe and lightweight access paths between solar panels |
| Food & Beverage Plants | Non-slip, hygienic, and corrosion-free platforms |
| Petrochemical Facilities | Flame retardant and chemical resistant flooring |
| Sewage & Water Treatment Plants | Durable against moisture and microbial corrosion |
| Mining & Heavy Industry | Shock-resistant and non-conductive walkways |
| Public Infrastructure Projects | Long-lasting pedestrian platforms in high-humidity zones |
Advantages Over Metal Grating
| Property | FRP Grating | Traditional Steel Grating |
|---|---|---|
| Weight | 70% lighter | Heavy, needs reinforced structures |
| Corrosion Resistance | High (no rust) | Prone to rusting, even when coated |
| Maintenance | Minimal | Requires regular painting/coating |
| Slip Resistance | Excellent with gritted surface | Moderate, especially when wet |
| Electrical Conductivity | Non-conductive | Conductive (needs grounding) |
Why Choose 40 mm FRP Grating for Solar Rooftops in Kenya?
This grating is perfectly tailored for rooftop environments, especially those exposed to harsh UV radiation and rainfall. In Nairobi, Kisumu, Mombasa, and other humid or coastal regions, steel corrodes rapidly—FRP eliminates that problem with its composite durability. The 40 mm mesh provides a strong yet lightweight solution that installers can handle without heavy lifting equipment. Its non-slip, UV-resistant surface ensures pedestrian safety while supporting regular panel maintenance access.
Customization Services
-
Pre-cutting and panel shaping to fit tight solar layouts or elevated platforms
-
Color coding for aesthetic or operational zoning
-
Embedded logo or site code ID tags for traceability
Installation Tips
-
Use stainless steel clamps or FRP fasteners to prevent galvanic corrosion
-
Maintain 5 mm thermal expansion gap around frame perimeters
-
Secure over supports spaced 600 mm to 1000 mm apart for optimal load performance
Whether you are managing an industrial plant in Thika, a solar PV installation in Eldoret, or a food factory in Nairobi, the 40 mm FRP Moulded Grating Mesh offers unmatched durability, flexibility, and value. Its resistance to harsh weather, chemicals, and corrosion makes it a long-term solution for safe, stable flooring.
Contact Mwanga Solutions Today
For inquiries, custom orders, or technical support, reach out to us at:
Phone: +254 729 299 439
Email: sales@mwanga.co.ke
The 40 mm FRP grating’s structural design combines a high load-bearing profile with a lightweight core, reducing the stress on your rooftop or elevated platform. Unlike welded steel grating, molded FRP does not deform under heat or react chemically with cleaning agents, salts, or acids commonly used in industrial cleaning.
The gritted surface is bonded during the molding process, providing permanent anti-slip performance without the need for secondary coatings. For facilities that demand both aesthetics and function, color-stable pigments ensure the panels retain their vibrant look despite prolonged sun exposure.
Mwanga Solutions offers full fabrication support, including site measurements, layout planning, and cutting to shape. This ensures your installation process is faster, cleaner, and more precise—whether you're handling a 50 kW solar plant or a 1 MW rooftop project.
