385 × 4000 mm FRP Solar Roof Walkway Panel- Ideal For Rooftop walkways on solar arrays, service corridors, and PV access zones in Kenya. Provides strong, anti-slip, and corrosion-resistant access paths that minimize contact with solar panels and sensitive roofing surfaces....
Provides strong, anti-slip, and corrosion-resistant access paths that minimize contact with solar panels and sensitive roofing surfaces.
| Specification | Details |
|---|---|
| Panel Size | 385 × 4000 mm |
| Mesh Pattern | 38 × 38 mm square openings |
| Thickness Options | 25 mm, 30 mm, 38 mm standard thickness |
| Open Area | Approximately 68% for water drainage & airflow |
| Weight (approx.) | 12–19 kg/m² depending on thickness |
| Surface Finish | Anti-slip gritted or smooth concave profile |
| Resin Type | Isophthalic polyester or vinyl ester |
| UV Resistance | Yes, UV-stabilized formulation |
| Electrical Conductivity | Non-conductive, safe near live PV equipment |
| Load Capacity (Uniform) | Up to ~700–900 kg/m² at ≤ 600 mm span |
| Point Load Capacity | >1500 kg on supported ribs |
| Operating Temperature Range | −40 °C to +120 °C |
| Chemical & Corrosion Resistance | Excellent in humid/coastal environments |
| Property | Typical Value |
|---|---|
| Tensile / Flexural Strength | Equivalent to ~200–300 MPa |
| Slip Resistance | Wet Coefficient of Friction ≥ 0.6 |
| Deflection at 600 mm Span | < 4 mm under ~4 kN/m² load |
| Thermal Expansion | ~1.8 × 10⁻⁵ /°C |
| Water Absorption | < 0.5 % |
Even after field cutting or notching, this molded FRP panel maintains over 80% of its structural integrity—making it ideal for routing conduit, cables, and pipe cutouts on rooftop installations.
| Support Span (mm) | Uniform Load‑Capacity (kg/m²) | Expected Deflection (mm) |
|---|---|---|
| 400 | ~900 | ~2.8 |
| 600 | ~700 | ~3.8 |
| 750 | ~500 | ~4.8 |
| Recommended Max | ≤ 600 mm | ≤ 5 mm |

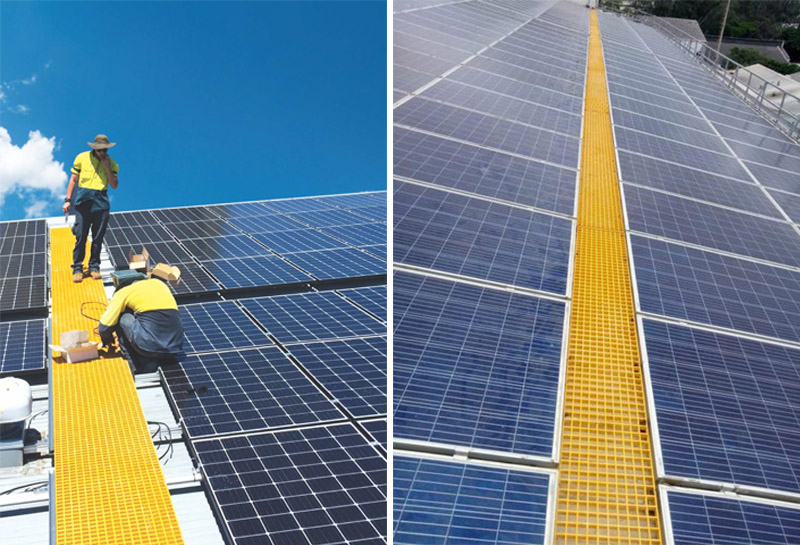

Solar Roof Walkways: Provides safe, non-slip footpaths between PV arrays without damaging panels.
Maintenance Platforms: Lightweight access panels for inverter, junction box, and conduit service routes.
Roof Safety Zones: Ideal for elevated walk areas in industrial rooftops or hotel terraces.
Coastal Installations: UV- and salt-air-resistant for installations in Mombasa or Lamu.
Water Treatment & Utility Decks: Safe and corrosion-proof walkways above tanks and trenches.
Clamp mounting compatible with solar rail systems using stainless steel or FRP clips—no roof penetration needed.
Support spacing should not exceed 600 mm to maintain rigidity and minimize deflection.
Carbide or diamond blade cutting is recommended; seal edges with resin or FRP trim.
Sequential panel joints can be aligned with overlap or connected via bolt plates to form longer continuous walkways.
Routine cleaning requires only water or mild detergent; no painting or rust protection needed.
To enquire about pricing, site-specific layout, or project-scale orders:
Phone / WhatsApp: +254 729 299 439
Email: info@mwanga.co.ke
Location: Nairobi (Industrial Area) – Delivery available across Kenya
This 385 × 4000 mm FRP Solar Roof Walkway Panel is engineered to combine structural performance with installation flexibility. The long-panel format reduces seams, simplifies roof layouts, and improves aesthetics while reducing labor time and potential trip points. Its molded fiberglass construction preserves integrity even when cut onsite, and the high open area ensures efficient water dispersion—a critical factor in Kenya’s rainy seasons.
For rooftop solar professionals and facility managers, the panel delivers a secure solution to support technician movement without compromising roof membranes or panel arrays. Its lightweight construction simplifies manual handling even on steep or multi-level roofs, reducing project costs and complexity. Non-conductive and UV-stabilized, it's particularly suited to utility or residential solar installations across Nairobi, Eldoret, Kisumu, and coastal regions.
Durability is another key strength. These panels resist corrosion, mold, and UV degradation—even in harsh environments. Over their lifetime of two decades or more, they remain virtually maintenance-free: no painting, rust control, or structural reinforcement required. Combined with localized fabrication, custom sizing, and fast delivery by Mwanga Solutions, they provide an optimal balance of safety, performance, and cost-efficiency.
Large 385 × 4000 mm FRP solar roof walkway panel—38 × 38 mm mesh, anti-slip, UV‑resistant, non‑conductive fiberglass grating. Ideal for solar PV access paths, roof walkways, and maintenance decking in Kenya. Durable, lightweight, low maintenance—available from Mwanga Solutions.
