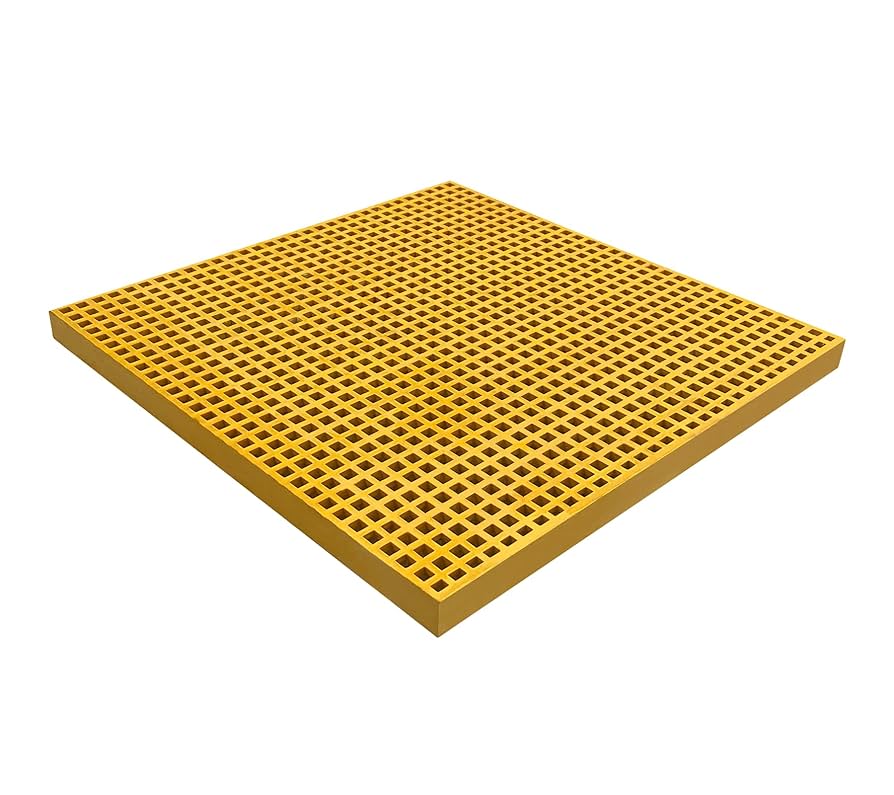

24 × 24 in Molded FRP Grating Panel – 1.5″ Thick Mini‑Mesh, Supports 11,000 lbs Load This fiberglass reinforced plastic (FRP) molded grating panel measures 24 × 24 in (~610 × 610 mm) with approximately 1.5 in (~38 mm) thick...
This fiberglass reinforced plastic (FRP) molded grating panel measures 24 × 24 in (~610 × 610 mm) with approximately 1.5 in (~38 mm) thick mini‑mesh structure. Engineered to handle concentrated point loads of up to 11,000 lbs (~5 metric tonnes) per panel, it is ideal for heavy-duty trench covers, equipment platforms, workshop flooring, solar walkways, and industrial zones that demand durability, safety, and corrosion resistance.
| Attribute | Description |
|---|---|
| Panel Size | 24 × 24 in (~610 × 610 mm) |
| Thickness | 1.5 in (~38 mm) |
| Mesh Opening | Mini‑mesh pattern (~1.5 in / 38 mm square) |
| Max Point Load (Capacity) | 11,000 lbs (~5 tonnes) per panel |
| Surface Finish | Molded pattern (gritted or smooth options available) |
| Weight per Panel | Approximately 9–20 kg (depends on fiber/resin composition) |
| Open Area | 45–70 % depending on mesh variant |
| Operating Temperature Range | –40 °C to +120 °C |
| Electrical Conductivity | Non‑conductive (safe for walkways near live electrical systems) |
| UV Resistance | Stabilized for prolonged sun exposure |
| Fire Retardancy | Optional Class 1 (ASTM E84) available |
| Chemical Resistance | Resistant to acidic, alkaline, salt, and solvent conditions |
| Customisation | Sizes and finishes can be adapted to site requirements |
| Warranty | Standard industrial lifecycle estimated at 15+ years |
| Property | Typical Value |
|---|---|
| Tensile Strength | ~200–250 MPa equivalent |
| Flexural Strength | ~300–400 MPa equivalent |
| Impact Resistance | Exceptional energy absorption |
| Slip Resistance (Wet Surface) | Coefficient of Friction ≥ 0.6 |
| Barcol Hardness | 40–55 |
| Deflection under Load (600 mm support span, 4 kN/m² load) | < 3 mm |
| Support Span (mm) | Max Uniform Load (kg/m²) | Deflection Under Load |
|---|---|---|
| 450 | ~600 | ~2.5 mm |
| 600 | ~470 | ~3.2 mm |
| 750 | ~350 | ~4.9 mm |
| >750 | Not recommended | May exceed 5 mm |
| Environment / Application | Benefit for Kenyan Use Cases |
|---|---|
| Industrial trenches | Supports heavy equipment and foot traffic safely |
| Workshop access flooring | Resists oil, solvents, and heavy abrasion |
| Solar farm technician platforms | Strong and non‑conductive for panel service zones |
| Coastal or marine structures | High durability under salt spray and UV exposure |
| Garage and forklift zones | Resists mechanical impact, easy to clean |
Panel Fixing: Use stainless steel (SS316) clips, bolts, or FRP saddle clamps.
Support Beam Spacing: Recommended ≤ 600 mm for minimal deflection.
Cutting & Edge Finishing: Use carbide or diamond saws; seal cut edges with resin or trim.
Edge Protection: Optional FRP vinyl edge trims reduce trip risk and preserve panel integrity.
Maintenance: Clean with water or mild detergent; no repainting required due to corrosion resistance.
| Property | FRP Panel (1.5″ mini‑mesh) | Steel Grating | Wood / Timber Floor |
|---|---|---|---|
| Load Capacity | 11,000 lbs point load per panel | Lower unless customized | Moderate load rating |
| Weight | Light, manually handled | Heavy, requires lifting | Light |
| Corrosion Resistance | Excellent (non‑metallic) | Rusts, needs coating | Rot and swell risk |
| Slip Safety | Embedded anti‑skid option | Varies; often slippery | Poor |
| Electrical Safety | Non‑conductive | Conductive | Non‑conductive |
| Lifecycle Maintenance | None required | High (painting, rust) | Needs treatment |
Mwanga Solutions stocks these high-strength FRP panels in Nairobi and provides rapid delivery across Kenya—Mombasa, Kisumu, Eldoret, Naivasha. We offer custom sizing, edge finishing, and installation support for contractors and facility managers. Our panels comply with industrial standards, and we supply engineering data, load certifications, and product traceability documentation.
Installation is swift and minimizes roof drilling or damage. Lightweight nature allows two installers to position panels easily. The material’s durability means no periodic maintenance, significantly reducing long‑term operational costs. For high-traffic or heavy-duty zones, this panel delivers consistent performance and peace of mind.
Heavy‑duty 24 × 24 in molded fiberglass grating panel (1.5 in thick, mini mesh). Rated for 11,000 lbs point load, non‑conductive, UV‑stable, and corrosion‑resistant. Ideal for industrial trench covers, solar technician platforms, and workshop access in Kenya. Contact Mwanga Solutions for custom sizing and delivery.
